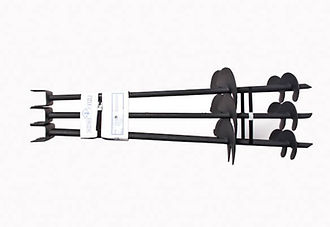

Double Disc Anchor w/ 4" & 4" Disc
Double disc with two 4" helix, recommended for soil class 2 & 3.
120004 / HP3 Black Painted / 30"x3/4" shaft / 8 per bundle, 200 per skid
121004 / HP3-G Galvanized / 30"x3/4" shaft / 8 per bundle, 200 per skid
120008 / HP1 Black Painted / 30"x5/8" shaft / 8 per bundle, 200 per skid
120011 / HP3A Black Painted / 48"x3/4" shaft
120012 / HP3B Black Painted / 42"x3/4" shaft
121012 / HP3B-G Galvanized / 42"x3/4" shaft
Single Disc Anchor w/ 6" Disc
Single disc with one 6" helix, recommended for soil class 4.
6 per bundle, 180 per skid
120000 / HP4 Black Painted / 48"x5/8" shaft
120400 / HP4-G Galvanized / 48"x5/8" shaft
120003 / HP5 Black Painted / 48"x3/4" shaft
120401 / HP5-G Galvanized / 48"x3/4" shaft
120001 / HP6 Black Painted / 36"x3/4" shaft
ZipCap Anchor and Stabilizer
Single or Double Disc anchor with ZipCap stabilizer
Installs easily with ZipCap anchor adapter (120029).
120050 / HP3-ZA Black Painted / 30"x3/4" shaft / two 4" helix
(For soil class 3)
120051 / HP17-ZA Black Painted / 36"x3/4" shaft / 4" & 6" helix
(For soil class 4) (pictured)
Patio Slab Anchors
Patio slab anchor utilizes a hooked rod attachment with anchor head. For use when pouring a concrete foundation (known as "wet set"). 16 per box.
120007 / HP13 Black Painted / "L" hook
121007 / HP13-G Galvanized / "L" hook
120005 / HP14 Black Painted / "J" hook (pictured)
121005 / HP14-G Galvanized / "J" hook
Anchor Head and Lag Bolt
Lag bolt anchor utilizes a 5/8" bolt with expansion sleeve installed through a standard anchor head. For use with an existing concrete foundation (known as "dry set"). 32 per box.
120009 / HP12LS Black Painted / Lag and Head (pictured)
121009 / HP12LS-G Galvanized / Lag and Head
120014 / HP12 Black Painted / Head only / 48 per box
121014 / HP12-G Galvanized / Head only / 48 per box
120018 / HP16BLT Lag bolt only
Cross Drive Anchors
Designed to be driven into solid rock, the cross drive anchor utilizes two 3/4" rods anchored through welded guide tubes and a standard anchor head. 4 per box, 200 per skid. Recommended for soil class 1 / Rock.
120002 / HP11 Black Painted / Cross drive head with two 48" rods
120010 / HP10 Black Painted / Cross drive head with two 36" rods
120017 / HP10HD Black Painted / Cross drive head only (pictured)
120048 / RHP6-17B-10 36" rods only
Eye Anchors
Each anchor includes a 1-1/2" eye. Easily installed with the Home Pride Eye Anchor Adapter (120120).
120104 / HP24-2E Black Painted / 24"x3/4" shaft / double 4" helix
120102 / HP1-E Black Painted / 30"x5/8" shaft / single 4" helix
120027 / HP9-C Black Painted / 30"x5/8" shaft / barbed for coral
120116 / HP3-E4 Black Painted / 30"x3/4" shaft / double 4" helix
120115 / HP2-E Black Painted / 30"x1/2" shaft / single 4" helix
120021 / HP1-E4 Black Painted / 30"x5/8" shaft / double 4" helix
120336 / HP9-6 Black Painted / 30"x3/4" shaft / with 6 barbs (no helix)
120044 / HP1-E36 Black Painted / 36"x5/8" shaft / double 4" helix
120103 / HP1-E6 Black Painted / 40"x5/8" shaft / single 6" helix
120105 / HP4-E2 Black Painted / 48"x3/4" shaft / double 4" helix
120101 / HP4-E Black Painted / 48"x5/8" shaft / single 6" helix w/ solid eye
Barbed Anchors
Each barbed anchor is black paint coated, and comes in a variety of head attachment options.
120026 / HP9 24"x3/4" shaft / swivel anchor head (pictured top)
120039 / HP1-P 24"x3/4" "U" shaped anchor / barbed on both ends
120024 / HP9-RB 26"x5/8" shaft / comes w/ 30" cable and lag
120033 / HP9-A 30"x3/4" shaft / "L" bracket head and 4 barbs
120034 / HP9-A2 30"x3/4" shaft / 2 hole "L" bracket 4 tab (pictured bottom)
120042 / HP9-A6TAB 30"x3/4" shaft / 2 hole "L" bracket 6 tab (pictured middle)
120032 / HP9-V 34"x3/4" shaft / standard anchor head welded
120031 / HP9A2-36 36"x3/4" shaft / 2 hole "L" bracket 6 tabs
120030 / HP9A2-364TAB 36"x3/4" shaft / 2 hole "L" bracket 4 tabs
120047 / HP9A-48 48"x3/4" shaft
